Hikvision

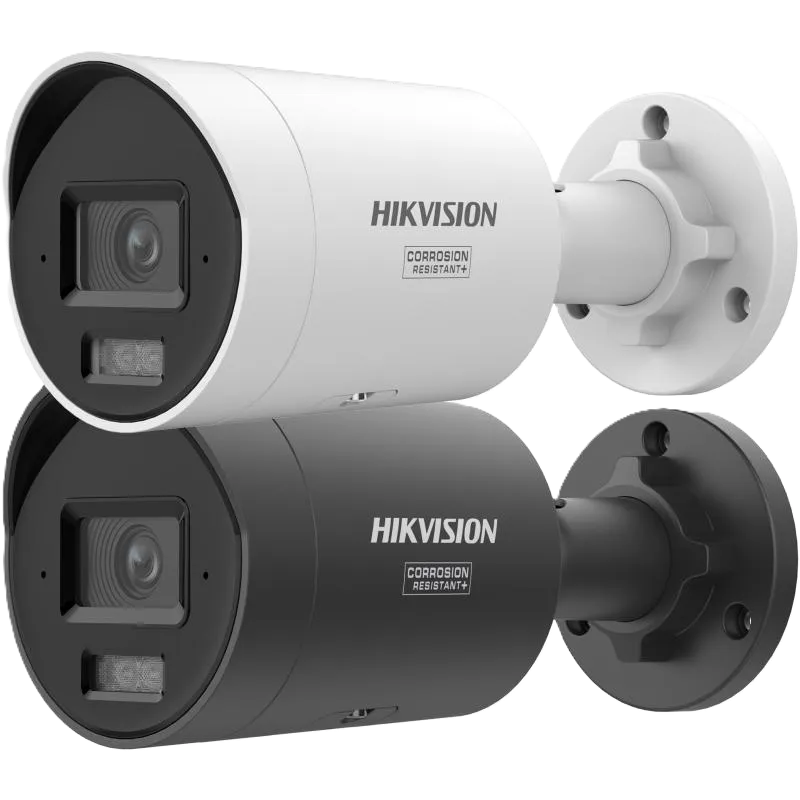

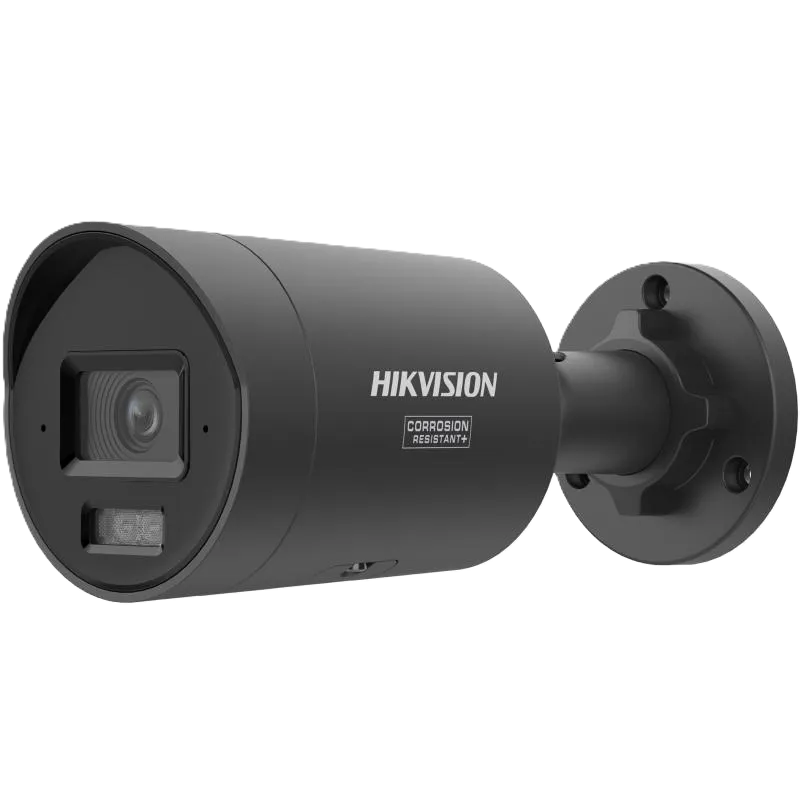

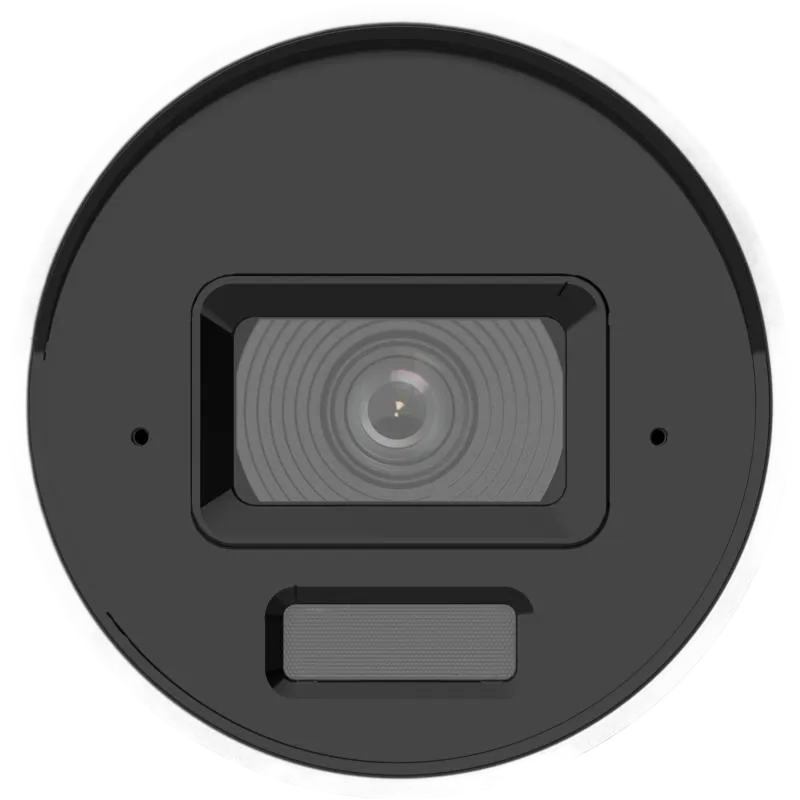

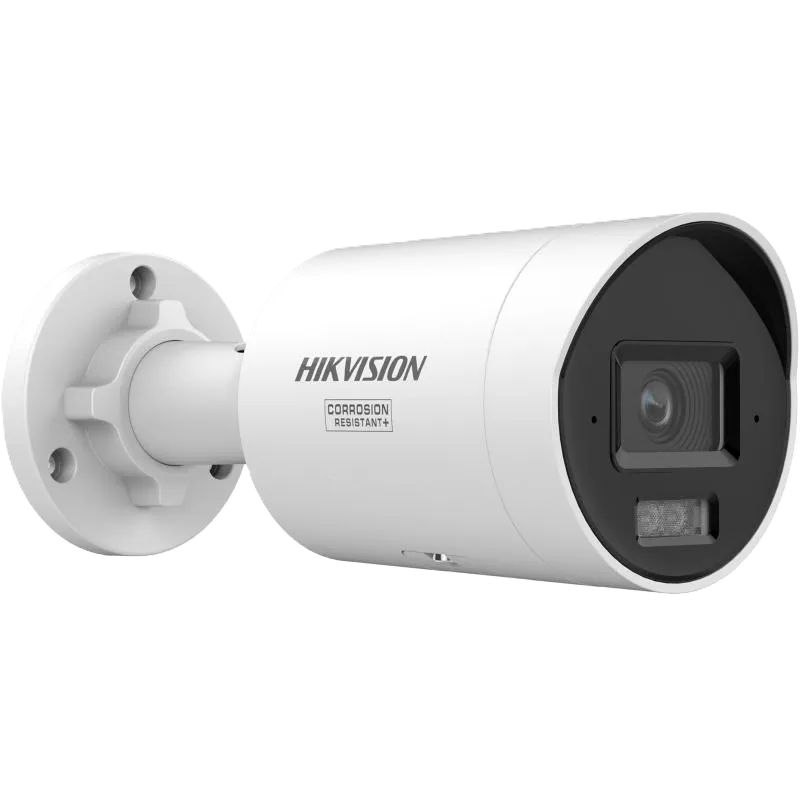

12MP Acusense Smart Hybrid Light Fixed Bullet Network Camera
Model:
DS-2CD20123G2-LI(U)Y
Key Features
- UHD: Ultra High Definition delivers lifelike immersion
- Smart Hybrid Light: Integrates IR and white lights, 3 supplemental lighting modes
- Person and vehicle classification based on deep learning
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- Anti-corrosion design, providing reliability and longevity compared to standard (NEMA 4X)
Genuine Products
Full Warranty
Professional Installation
24/7 Support
Technical Specifications
Detailed technical information for DS-2CD20123G2-LI(U)Y
| Model | DS-2CD20123G2-LI(U)Y |
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 4608 × 2592 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–360°, tilt: 0°–90°, rotate: 0°–360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm: H 94.2°, V 51.1°, D 110.2°; 4 mm: H 73.1°, V 40.2°, D 84.8°; 6 mm: H 47°, V 25.6°, D 54.6° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 2.9 m to ∞; 4 mm: 3.5 m to ∞; 6 mm: 8.3 m to ∞ |
| DORI | |
| 2.8 mm | D: 117 m, O: 46 m, R: 23 m, I: 11 m |
| 4 mm | D: 148 m, O: 59 m, R: 29 m, I: 14 m |
| 6 mm | D: 236 m, O: 93 m, R: 47 m, I: 23 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (4608 × 2592), 25 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (4608 × 2592), 30 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *supported under certain settings |
| Video Compression | Main: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 20 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Target Cropping | Yes |
| Audio | |
| Audio Type | -U: Mono sound |
| Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32–192 Kbps (MP2L2)/8–320 Kbps (MP3)/16–64 Kbps (AAC-LC) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Security | Password protection, HTTPS encryption, 802.1X authentication, watermark, IP filter, HTTP/HTTPS authentication, WSSE, RTP/RTSP over HTTPS, TLS 1.1/1.2/1.3, audit log, MAC authentication |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, user |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Web Browser | Chrome 80+, Firefox 80+, Edge 89+ (plugin-free live view) |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10/100M self-adaptive |
| On-Board Storage | microSD/microSDHC/microSDXC up to 512 GB |
| Reset Key | Yes |
| Audio | -U: Built-in single microphone; Other: No microphone |
| Event | |
| Basic Event | Motion detection (human/vehicle classification), video tampering, exception |
| Smart Event | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
| Deep Learning Function | |
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance/exit; alarm triggering by human/vehicle classification |
| General | |
| Power | 12 VDC ±25%, 0.8 A, max. 9.6 W; PoE IEEE 802.3af Class 3, max. 11.5 W |
| Material | Metal |
| Dimension | Ø74.4 mm × 176.3 mm (Ø2.93" × 6.94") |
| Package Dimension | 234 mm × 120 mm × 117 mm (9.21" × 4.72" × 4.61") |
| Weight | Approx. 515 g (1.1 lb.) |
| With Package Weight | Approx. 760 g (1.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤95% non-condensing |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤95% non-condensing |
| Language | 33 languages including English, Russian, German, French, Spanish, Portuguese, Chinese, Japanese, Korean, Ukrainian, etc. |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017 |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
| Available Models | DS-2CD20123G2-LIUY (2.8 mm, 4 mm, 6 mm); DS-2CD20123G2-LIY (2.8 mm, 4 mm, 6 mm); DS-2CD20123G2-LIUY (2.8 mm, Black) |
| Accessories | |
| Optional Mounts | DS-1275ZJ-SUS Vertical Pole Mount; DS-1276ZJ-SUS Corner Mount; DS-1280ZJ-XS-Y Junction Box |
